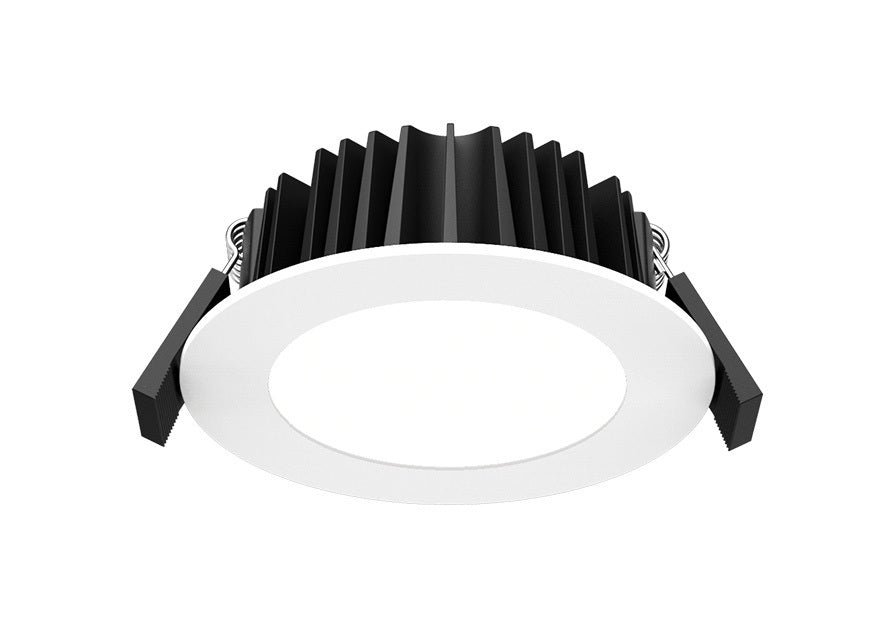

Unoled TL10 10W Recessed Compact Tri-colour Downlight

Description

• Recessed SMD LED downlight manufactured with an aluminium body and finished with corrosion resistant powder coating
• Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
• Supplied with remote flicker free Trailing Edge driver

Physical Characteristics
Trim Colour: White
Dimensions: ⌀104 X 45 (H) mm
Weight: 170 g
Cutout: Circle - 85 - 95 mm
Spring Height: 30 mm

General Characteristics
Family: Trend For Trade, Unoled
Surface: Ceiling
Mounting: Recessed
Insulation Contact: IC-4
Ingress Protection: IP44
Warranty: 3 Years

Technical Characteristics
LED Power: 10W
LED Type: SMD
LED Lumen Output*: 1,000 lm
Efficacy*: Up to 87 lm/W
CCT Technology: Tri-colour Selectable
Colour Temperature: 3000K, 4000K, 5700K
Colour Technology: CRI 80+ Standard
Colour Deviation: SDCM ≤ 3
Lifetime: 50,000 hours (L70)
Beam Angle: Wide
System Power: 11.7W Typical
Driver Model: Trend DR-TL10 (T/E)
Input: 200-240V AC 50Hz
Power Factor: >0.95
Driver: Trailing Edge
