Description
- Recessed compact adjustable LED downlight, manufactured with an aluminium body and powder coat finish
- Deep recessed trim design provides excellent glare control, improving visual comfort
- Covering 78 mm cutout size, an ideal replacement for existing downlights
- CRI 90+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics

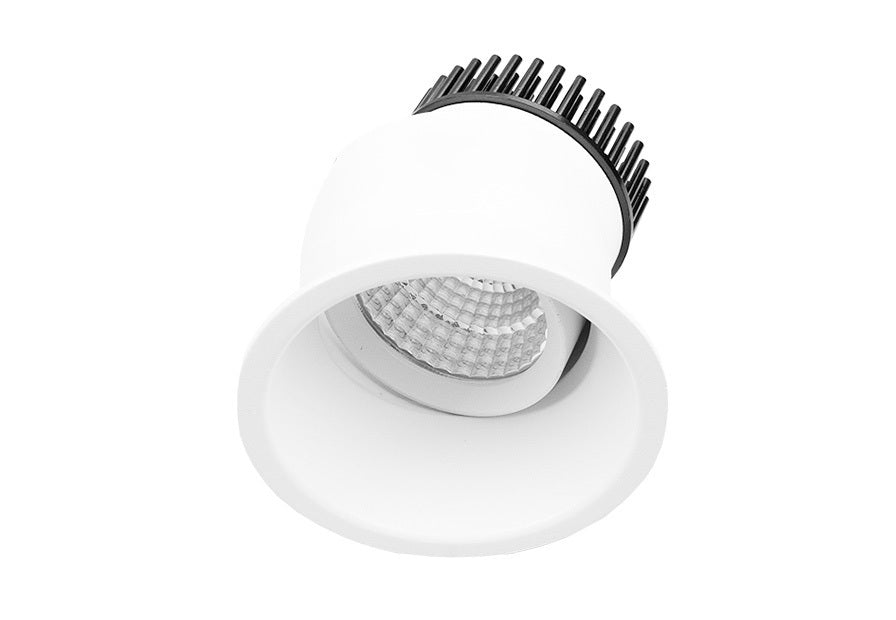

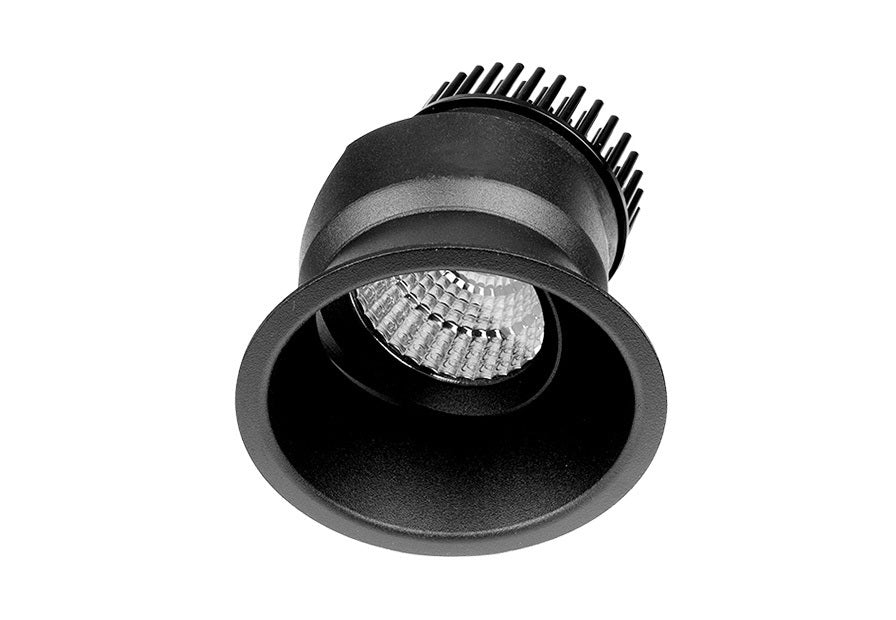

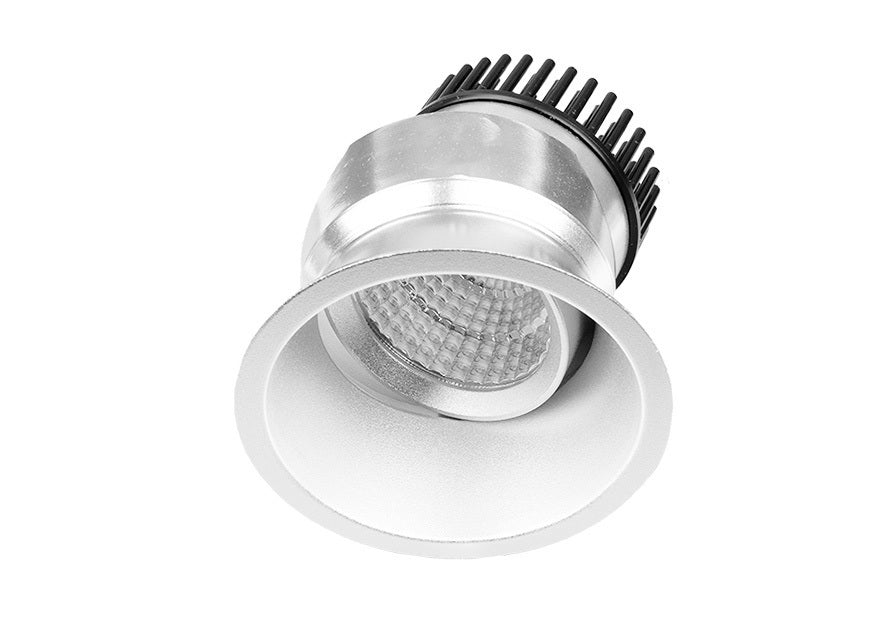

Trim Colour: White|Black|Silver
Dimensions: ⌀90 X 95 (H) mm
Weight: 205 g
Tilt Angle: 20°
Cutout: Circle - 78 mm
Spring Height: 45 mm
General Characteristics
Family: Resiled
Surface: Ceiling
Mounting: Recessed
Insulation Contact: IC-4
Ingress Protection: IP20
Technical Characteristics*
LED Power: 8.5W
LED Type: COB
LED Lumen Output*: 1050 lm
Luminous Flux*: 865 lm
Efficacy*: 80.09 lm/W
Colour Temperature: 3000K|4000K
Colour Technology: CRI 90+ Standard
Colour Deviation: SDCM ≤ 3
Lifetime: 50,000 hours (L70)
Beam Angle: Medium
System Power: 10.8W Typical
Driver Model: Trend 150208-250 (L&T)
Input: 180-265V AC 50/60 Hz
Output: 30-40V DC 250mA
Power Factor: >0.93
Protection: OVP, OTP,OCP, SCP,OPP
Driver: Leading & Trailing Edge|DALI|1-10V
* Based on: 4000K, CRI 90+ Standard, Medium, Leading & Trailing Edge
