Description

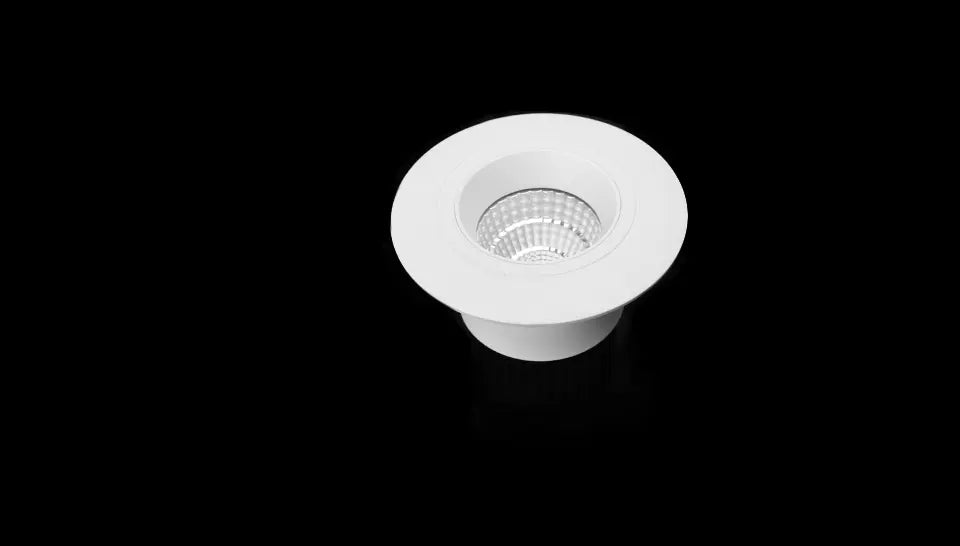

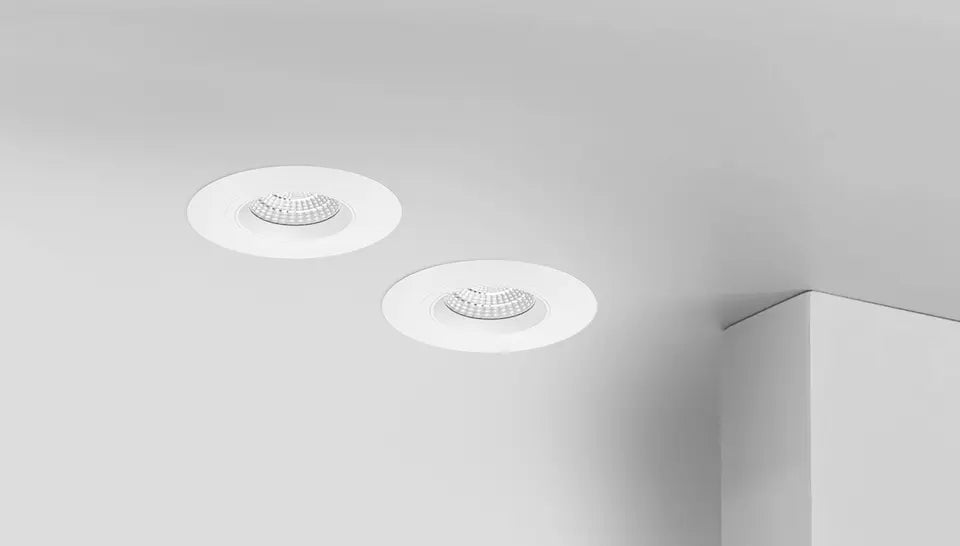

- Recessed IP65 rated LED downlight with exceptional light output and quality
- Manufactured with an aluminium body and powder coat finish
- A wide choice of power options and sizes available (XDF15, XDF25, XDF35 and XDF55)
- CRI 90+ available in 2700K, 3000K, 3500K and 4000K CCT options; CRI 93+ VIVID and CRI 97+ available in 2700K, 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics

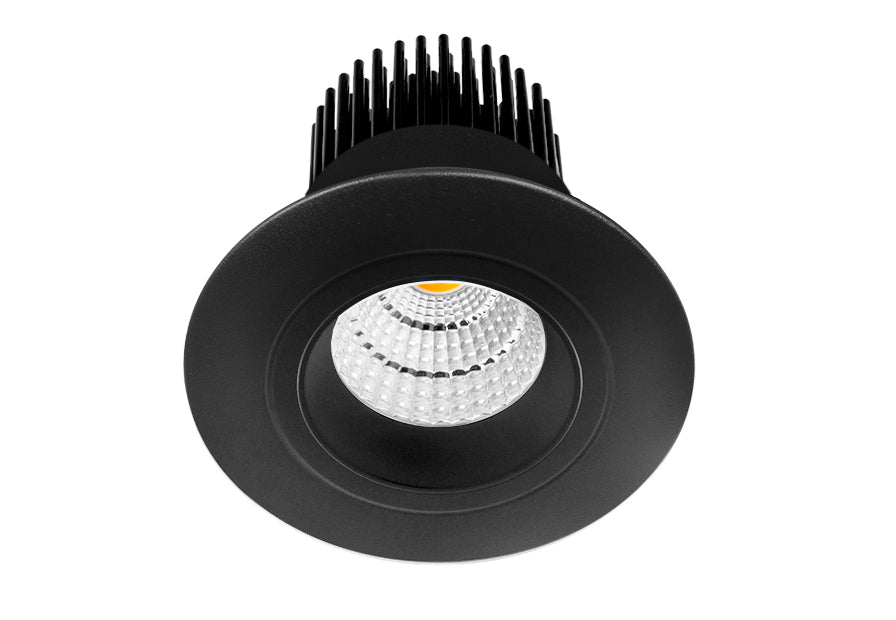

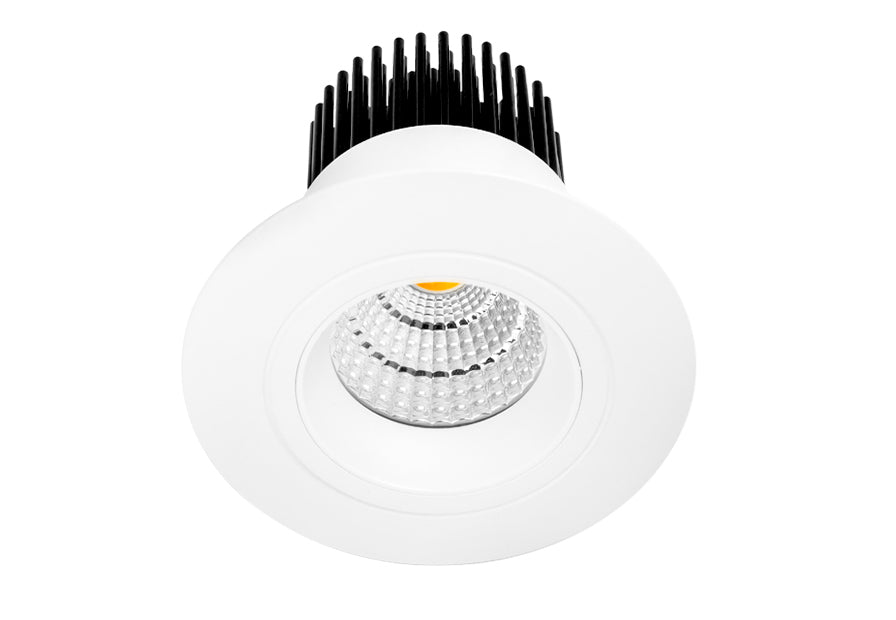

Trim Colour: White|Black
Insert Colour: White|Black
Dimensions: ⌀110 X 100 (H) mm
Weight: 280 g
Cutout: Circle - 76 - 92 mm
Spring Height: 15 mm
General Characteristics
Family: Miniled
Surface: Ceiling
Mounting: Recessed
Insulation Contact: CA90
Ingress Protection: IP65
Technical Characteristics*
LED Power: 10W
LED Type: COB
LED Lumen Output*: 1450 lm
Luminous Flux*: 1142 lm
Efficacy*: 97.61 lm/W
Colour Temperature: 2700K|3000K|3500K|4000K
Colour Technology: CRI 90+ Standard|CRI 93+ VIVID|CRI 97+ Standard
Colour Deviation: SDCM ≤ 3
Lifetime: 50,000 hours (L80)
Beam Angle: Wide|Narrow|Medium
LED Power: 10W
LED Type: COB
LED Lumen Output*: 1450 lm
Luminous Flux*: 1142 lm
Efficacy*: 97.61 lm/W
Colour Temperature: 2700K|3000K|3500K|4000K
Colour Technology: CRI 90+ Standard|CRI 93+ VIVID|CRI 97+ Standard
Colour Deviation: SDCM ≤ 3
Lifetime: 50,000 hours (L80)
Beam Angle: Wide|Narrow|Medium
System Power: 11.7W Typical
Driver Model: Trend 150218-300 (L&T)
Input: 180-265V AC 50/60 Hz
Output: 30-42V DC 300mA
Power Factor: >0.93
Protection: OVP,OTP,OCP,SCP,OPP
Driver: Leading & Trailing Edge|DALI|1-10V
* Based on: 4000K, CRI 90+ Standard, Wide, Leading & Trailing Edge
Driver Model: Trend 150218-300 (L&T)
Input: 180-265V AC 50/60 Hz
Output: 30-42V DC 300mA
Power Factor: >0.93
Protection: OVP,OTP,OCP,SCP,OPP
Driver: Leading & Trailing Edge|DALI|1-10V
* Based on: 4000K, CRI 90+ Standard, Wide, Leading & Trailing Edge
Product Standard Datasheet Download
Installation Guide Download
