Description

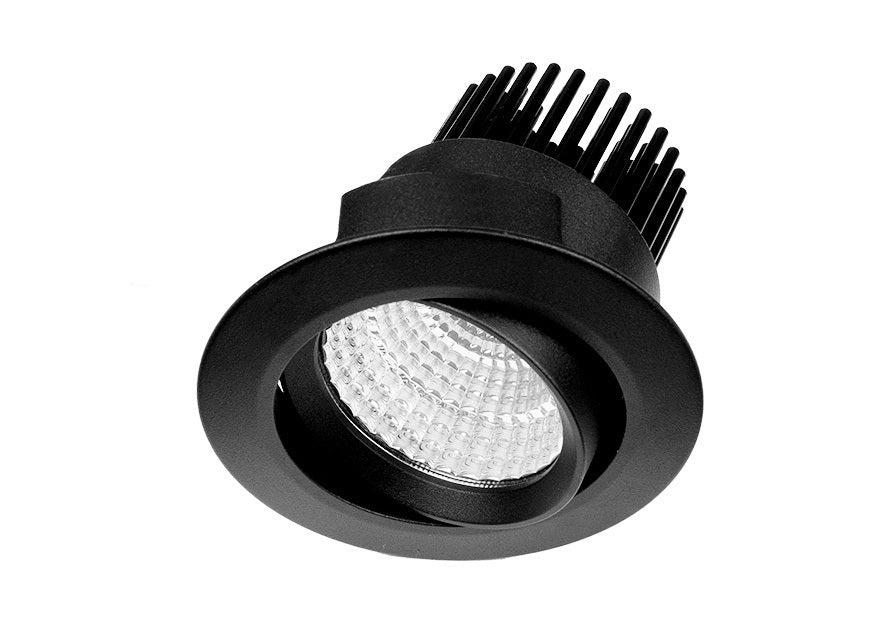

- Recessed adjustable LED downlight, manufactured with an aluminium body and powder coat finish
- Covering 76 mm cutout size, an ideal replacement for existing downlights
- CRI 90+ available in 3000K and 4000K CCT options
- Supplied with a remote driver
Physical Characteristics

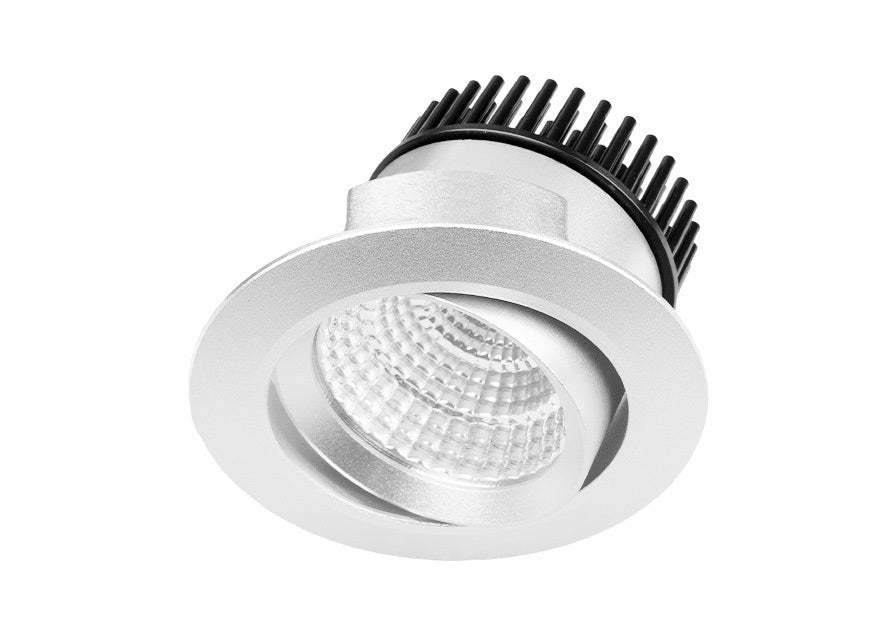

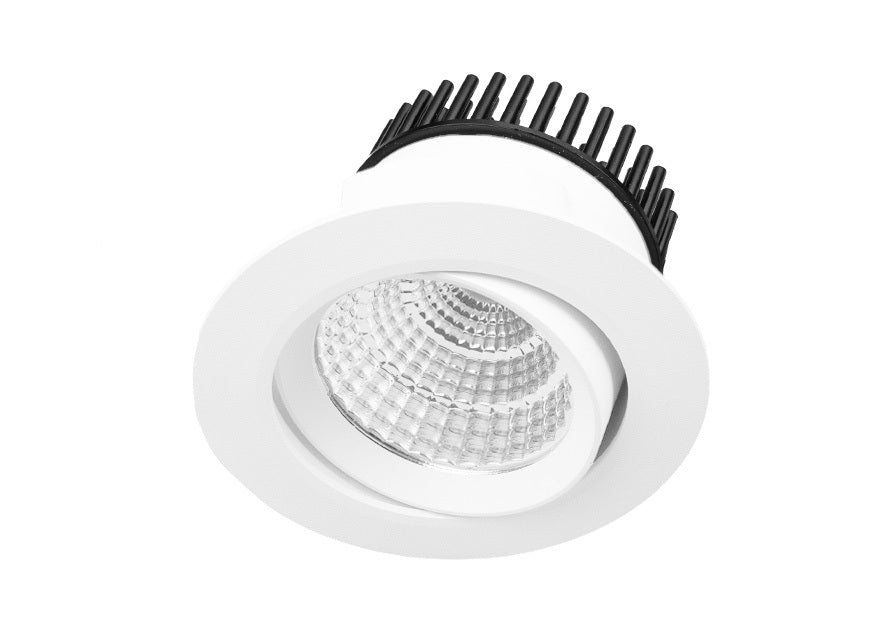

Trim Colour: White| Black| Silver
Dimensions: ⌀90 X 65 (H) mm
Weight: 215 g
Tilt Angle: 15°
Cutout: Circle - 76 mm
Spring Height: 20 mm
General Characteristics
Family: Resiled
Surface: Ceiling
Mounting: Recessed
Insulation Contact: IC-4
Ingress Protection: IP20
Technical Characteristics*
LED Power: 8.5W
LED Type: COB
LED Lumen Output*: 1050 lm
Luminous Flux*: 955 lm
Efficacy*: 88.43 lm/W
Colour Temperature: 3000K|4000K
Colour Technology: CRI 90+ Standard
Colour Deviation: SDCM ≤ 3
Lifetime: 50,000 hours (L70)
Beam Angle: Wide
System Power: 10.8W Typical
Driver Model: Trend 150208-250 (L&T)
Input: 180-265V AC 50/60 Hz
Output: 30-40V DC 250mA
Power Factor: >0.93
Protection: OVP, OTP, OCP, SCP, OPP
Driver: Leading & Trailing Edge|DALI|1-10V
Based on: 4000K, CRI 90+ Standard, Wide, Leading & Trailing Edge
Product Standard Datasheet Download
Installation Guide Download
