Description

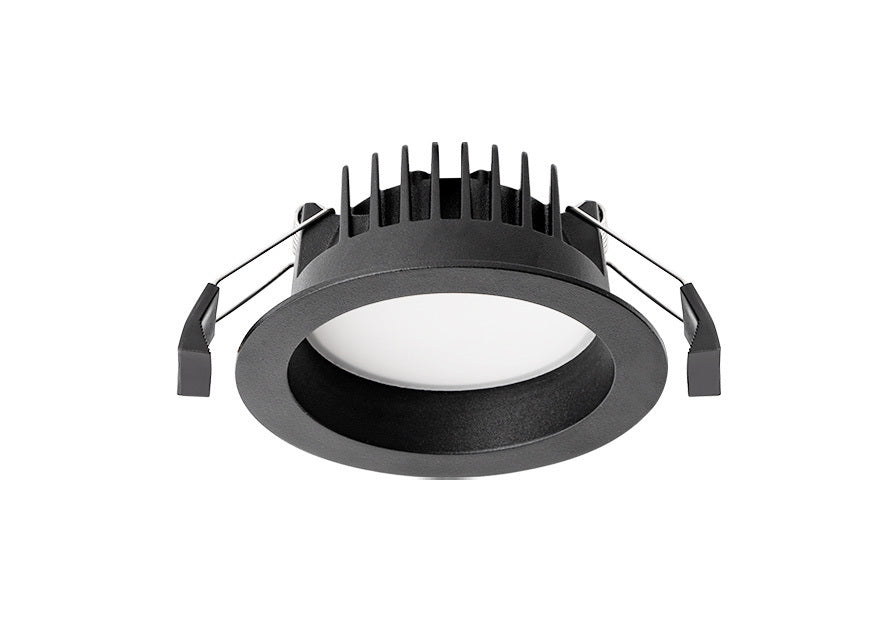

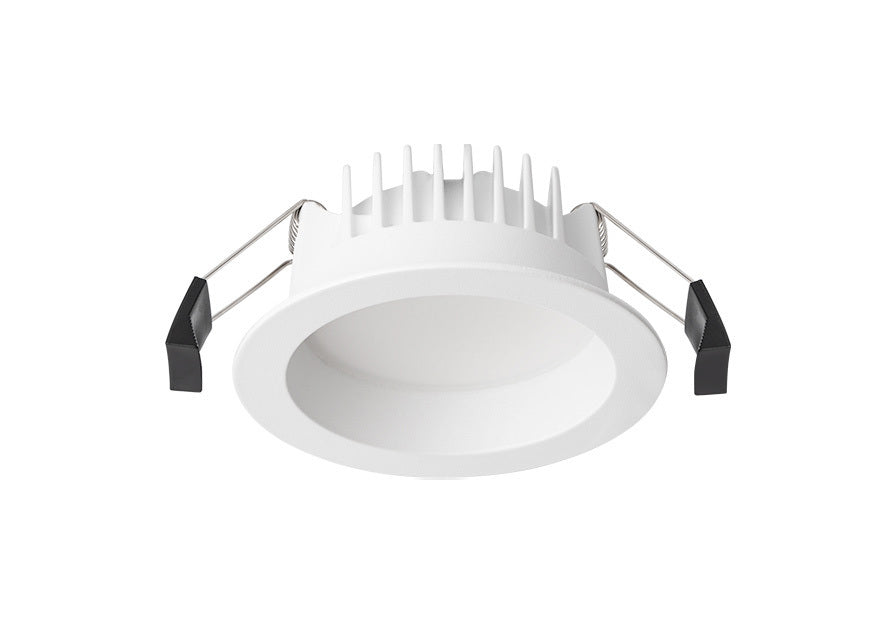

- Recessed SMD LED fixed downlight with a slim design and stepped opal polycarbonate diffuser for uniform lighting distribution
- Aluminium profile provides excellent thermal management for exceptional heat dissipation
- An ideal lighting solution for residential and commercial applications
- Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
- Supplied with remote flicker free Leading & Trailing Egde dimmable driver
Physical Characteristics
Trim Colour: White|Black
Dimensions: ⌀110 X 52 (H) mm
Weight: 260 g
Cutout: Circle - 90 - 95 mm
Spring Height: 30 mm
General Characteristics
Family: Trend For Trade, Multiled
Surface: Ceiling
Mounting: Recessed
Insulation Contact: IC-4
Ingress Protection: IP54
Warranty: 3 Years
Technical Characteristics
LED Power: 10W
LED Type: SMD
LED Lumen Output*: 990 lm
Efficacy*: Up to 104 lm/W
CCT Technology: Tri-colour Selectable
Colour Temperature: 3000K, 4000K, 5700K
Colour Technology: CRI 85+ Standard
Colour Deviation: SDCM ≤ 3
Lifetime: 50,000 hours (L70)
Beam Angle: Wide
System Power: 9.5W Typical
Driver Model: Trend DR-DTL10 (L&T)
Input: 200-240V AC 50Hz
Power Factor: >0.95
Protection: OTP,SCP
Driver: Leading & Trailing Edge
