Econoled EA7 7W Recessed Adjustable Downlight

Description

• Recessed petite adjustable LED downlight with low profile, suitable for applications with low ceiling clearance
• Equipped with a front collimator lens and powered by a high output COB LED
• CRI 90+ available in 3000K and 4000K CCT options
• Supplied with a remote driver

Physical Characteristics

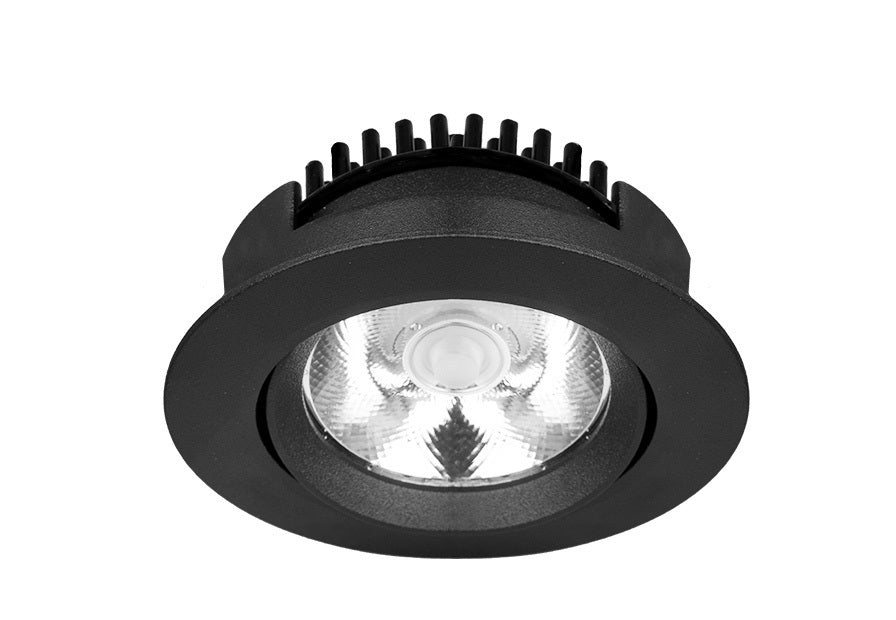

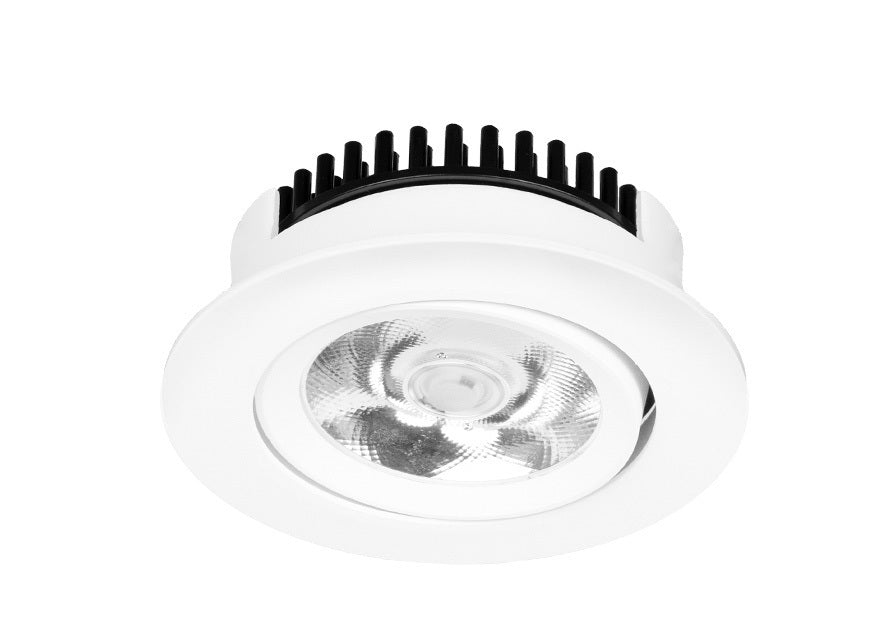

Trim Colour: White|Black
Dimensions: ⌀90 X 35 (H) mm
Weight: 160 g
Tilt Angle: 15°
Cutout: Circle - 76 mm
Spring Height: 20 mm

General Characteristics
Family: Econoled
Surface: Ceiling
Mounting: Recessed
Insulation Contact: CA90
Ingress Protection: IP20

Technical Characteristics*
LED Power: 7W
LED Type: COB
LED Lumen Output*: 950 lm
Luminous Flux*: 742 lm
Efficacy*: 90.49 lm/W
Colour Temperature: 3000K|4000K
Colour Technology: CRI 90+ Standard
Colour Deviation: SDCM ≤ 3
Lifetime: 50,000 hours (L70)
Beam Angle: Medium
System Power: 8.2W Typical
Driver Model: Trend 150210-200 (L&T)
Input: 200-240V AC 50 Hz
Output: 30-42V DC 200mA
Power Factor: >0.95
Protection: OVP, OTP, OCP, SCP, OPP
Driver: Leading & Trailing Edge
* Based on: 4000K, CRI 90+ Standard, Medium, Leading & Trailing Edge
