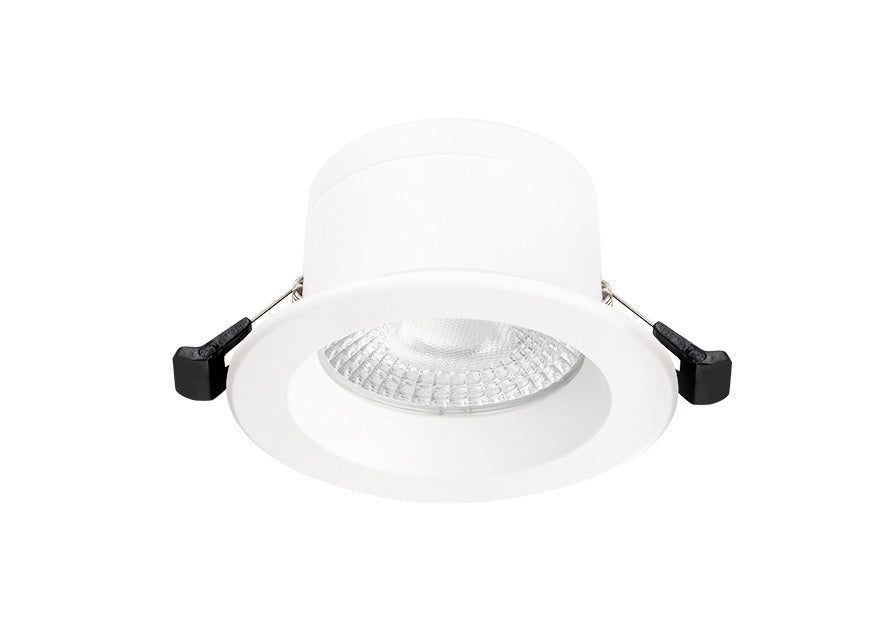

Econoled EC7 7W IP65 Rated Recessed Tri-colour Downlight

Description

• Recessed COB fixed LED downlight with broad trim and wide collimating lens
• Manufactured with an aluminium body and finished with corrosion resistant powder coating
• An ideal lighting solution for residential and commercial applications
• Colour temperature can be selected via a switch at the rear of the luminaire, enabling users to switch between 3000K (warm white), 4000K (cool white) and 5700K (daylight) CCT
• Supplied with remote flicker free Leading & Trailing Edge dimmable driver

Physical Characteristics

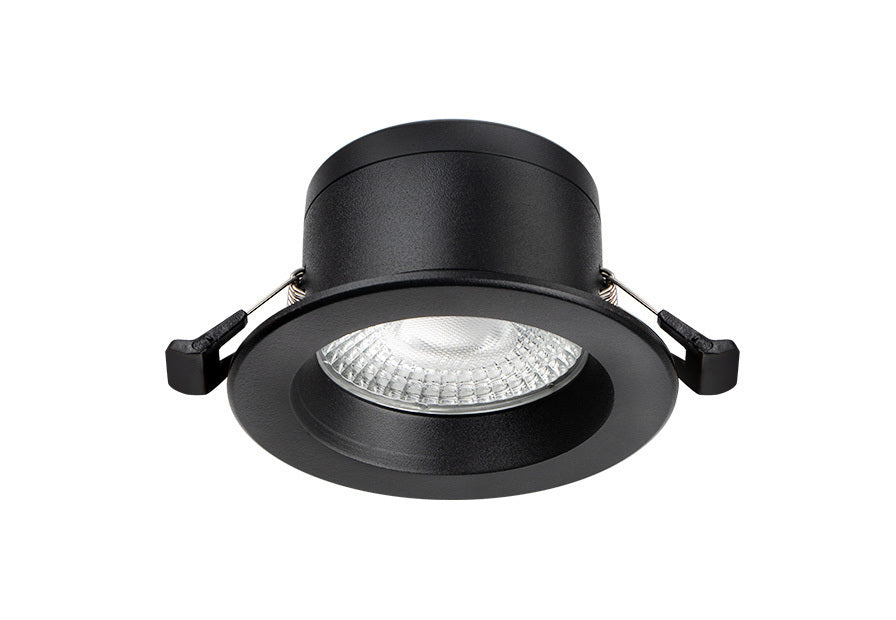

Trim Colour: White|Black
Dimensions: ⌀105 X 58 (H) mm
Weight: 160 g
Cutout: Circle - 76 - 92 mm
Spring Height: 20 mm

General Characteristics
Family: Trend For Trade, Econoled
Surface: Ceiling
Mounting: Recessed
Insulation Contact: IC-4
Ingress Protection: IP65
Warranty: 3 Years

Technical Characteristics
LED Power: 7W
LED Type: COB
LED Lumen Output*: 802 lm
Efficacy*: Up to 96 lm/W
CCT Technology: Tri-colour Selectable
Colour Temperature: 3000K, 4000K, 5700K
Colour Technology: CRI 90+ Standard
Colour Deviation: SDCM ≤ 3
Lifetime: 50,000 hours (L70)
Beam Angle: Wide
System Power: 8.3W Typical
Driver Model: Trend 150210-200 (L&T)
Input: 200-240V AC 50 Hz
Output: 30-42V DC 200mA
Power Factor: >0.95
Protection: OVP, OTP, OCP, SCP, OPP
Driver: Leading & Trailing Edge
