Made by order only, please allow 4-5 weeks for production, Made in Australian

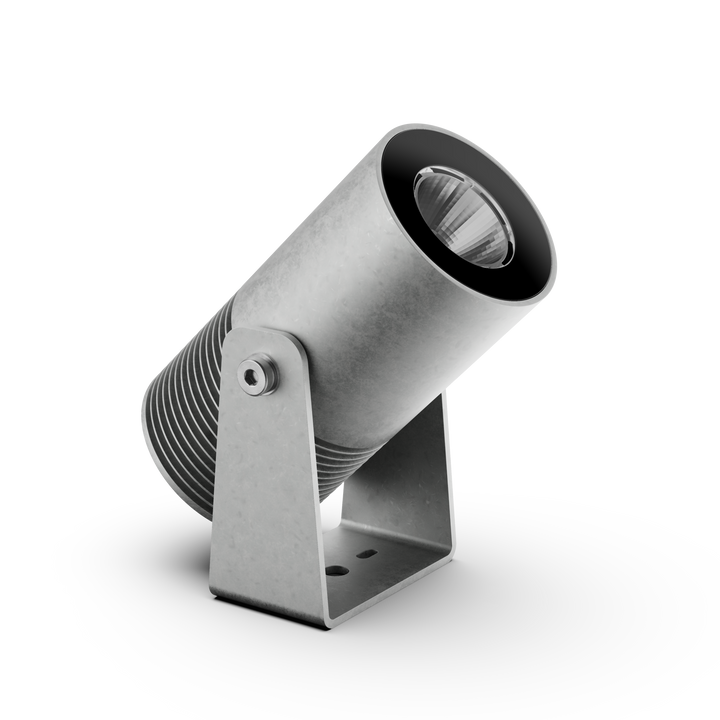

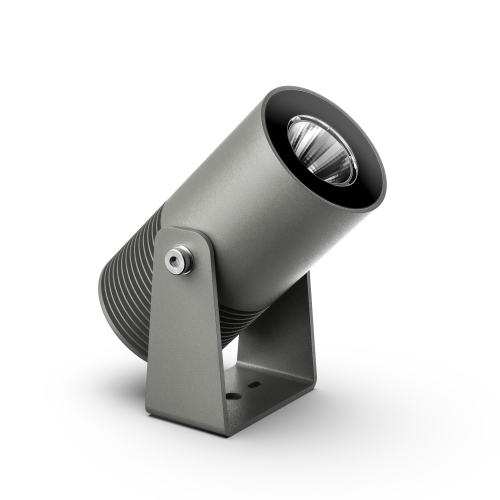

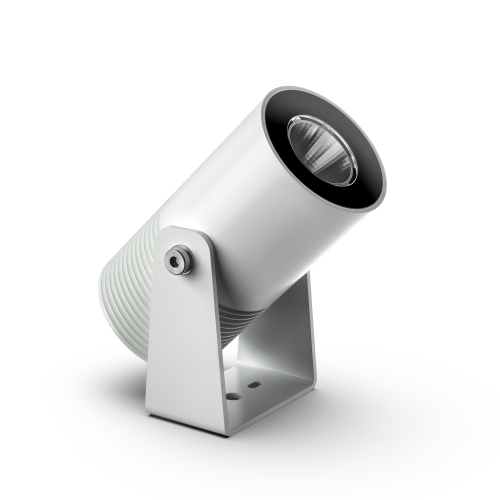

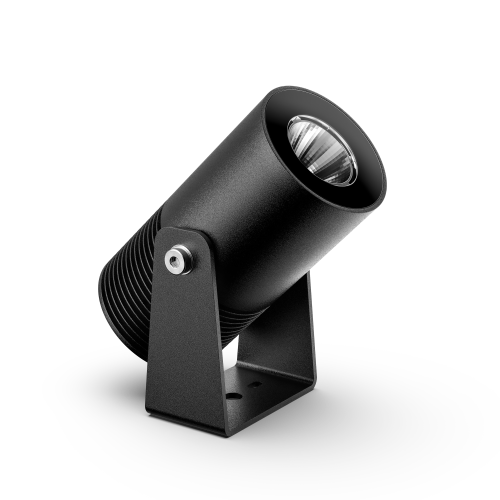

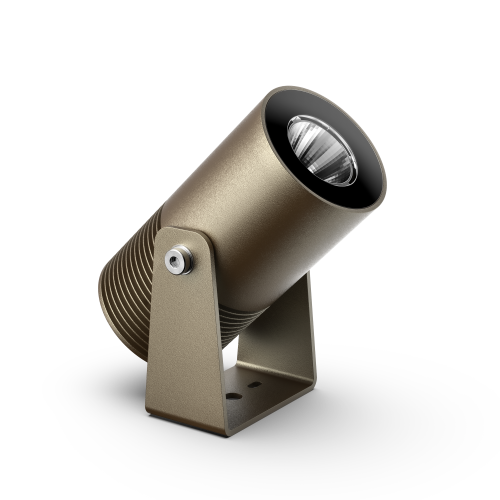

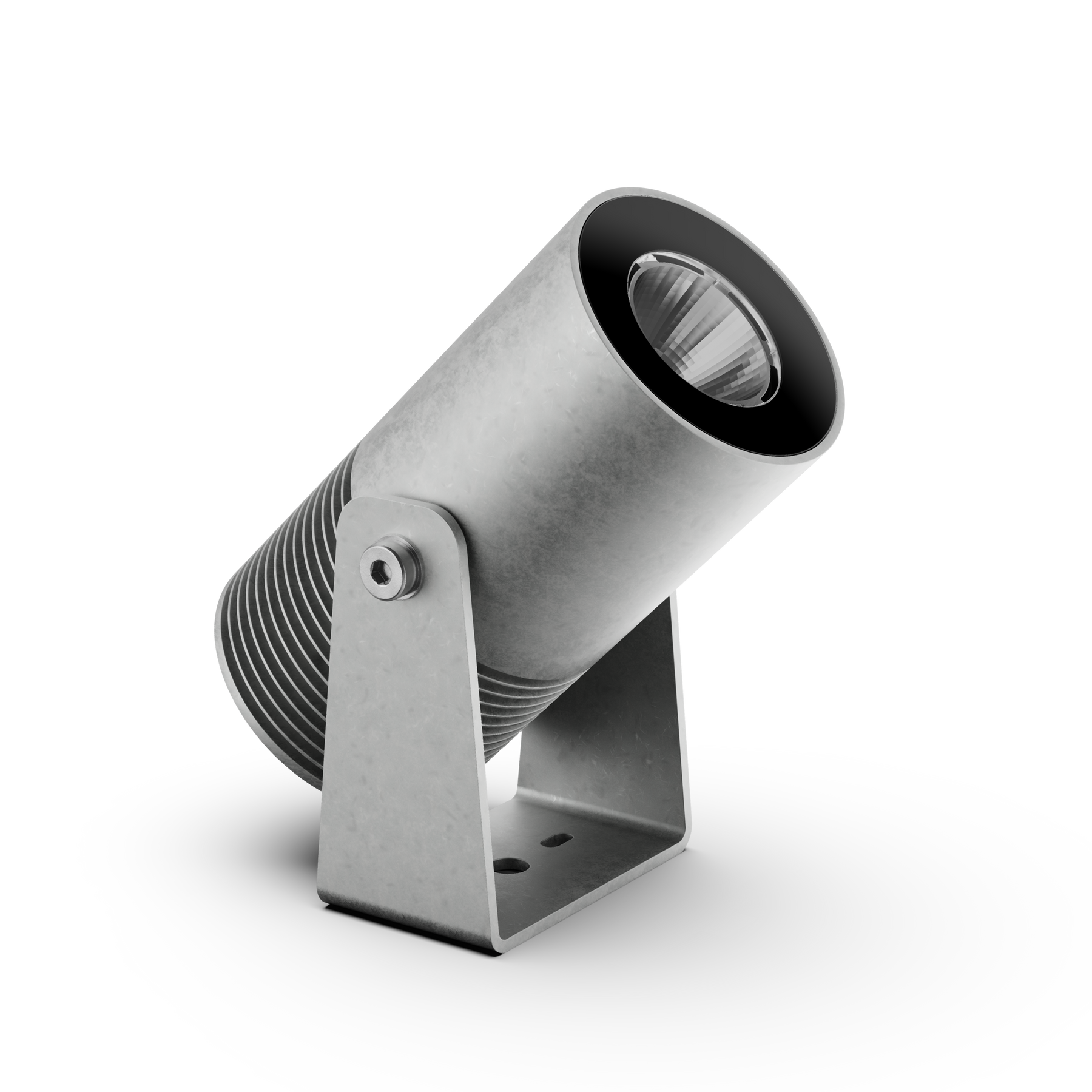

The AQL-180 is a high-output projector designed for architectural and commercial lighting applications. Available in White or RGBW options with advanced colour mixing optics, the AQL-180 is perfect for the dynamic RGB illumination of a variety of external facades and features. Full DALI control via LT-84A interface and 3-wire connection.
Specification
- Brand: Aqualux
- Input Voltage: 24V DC
- Wattage: 20W
- Dimming: 3-wire PWM 10V Dimming or 4 CH Low- Side PWM for RGBW
- Lumens: 2322lm/2380lm/2404lm/2410lm
- Material: CNC Machined
- Color Temperature: 2200k, 2700k, 3000k, 3500k or 4000k or RGB+3000k
- Optical selection from: Medium 25°, Medium 40°, Narrow 15°, Wide wide 50°
- Cable: 500mm 3-core Anti-Siphon Cable or 500mm 6-core standard cable
- IP Rating: IP65
- Warranty: 7 years
- Salt water Resistant
Dimension
- Facial diameter: 75mm
- Length: 140mm
- Height: 87mm
