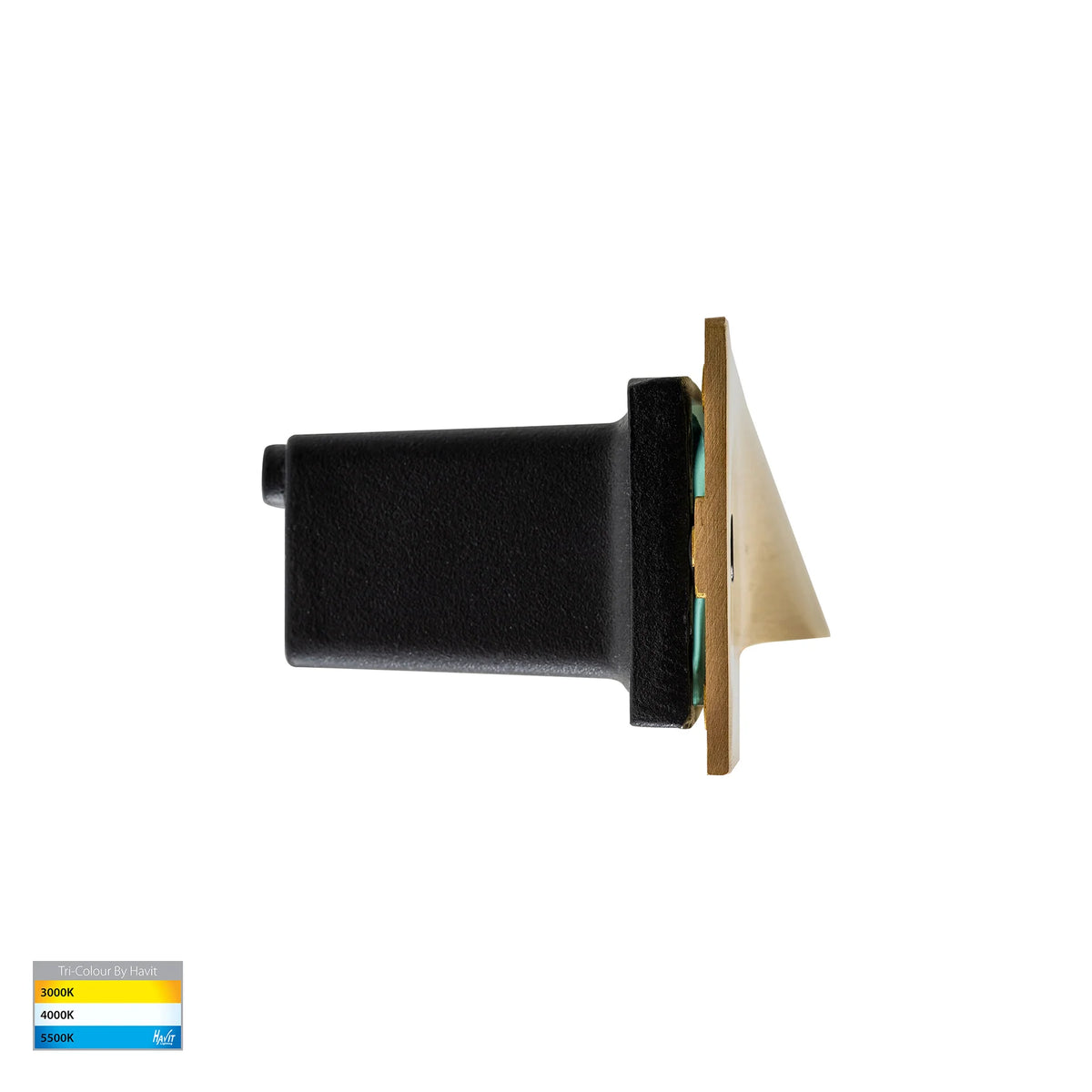

HV3011T-BR-12V | HV3011T-BR-240V - Corba Brass Recessed Brick Light

Specification

• Brand: Havit
• Input Voltage: 240V or 12V
• Wattage: 3w/6w/10w
• Material: Solid Brass Cover , powder coated die-cast aluminium body
• Tricolor: 3000k/4000k/5500k
• IP Rating: IP54
• Warranty: 3 years replacement warranty
• supplied with clips for use in Gyprock walls
• Replaceable LED Panels

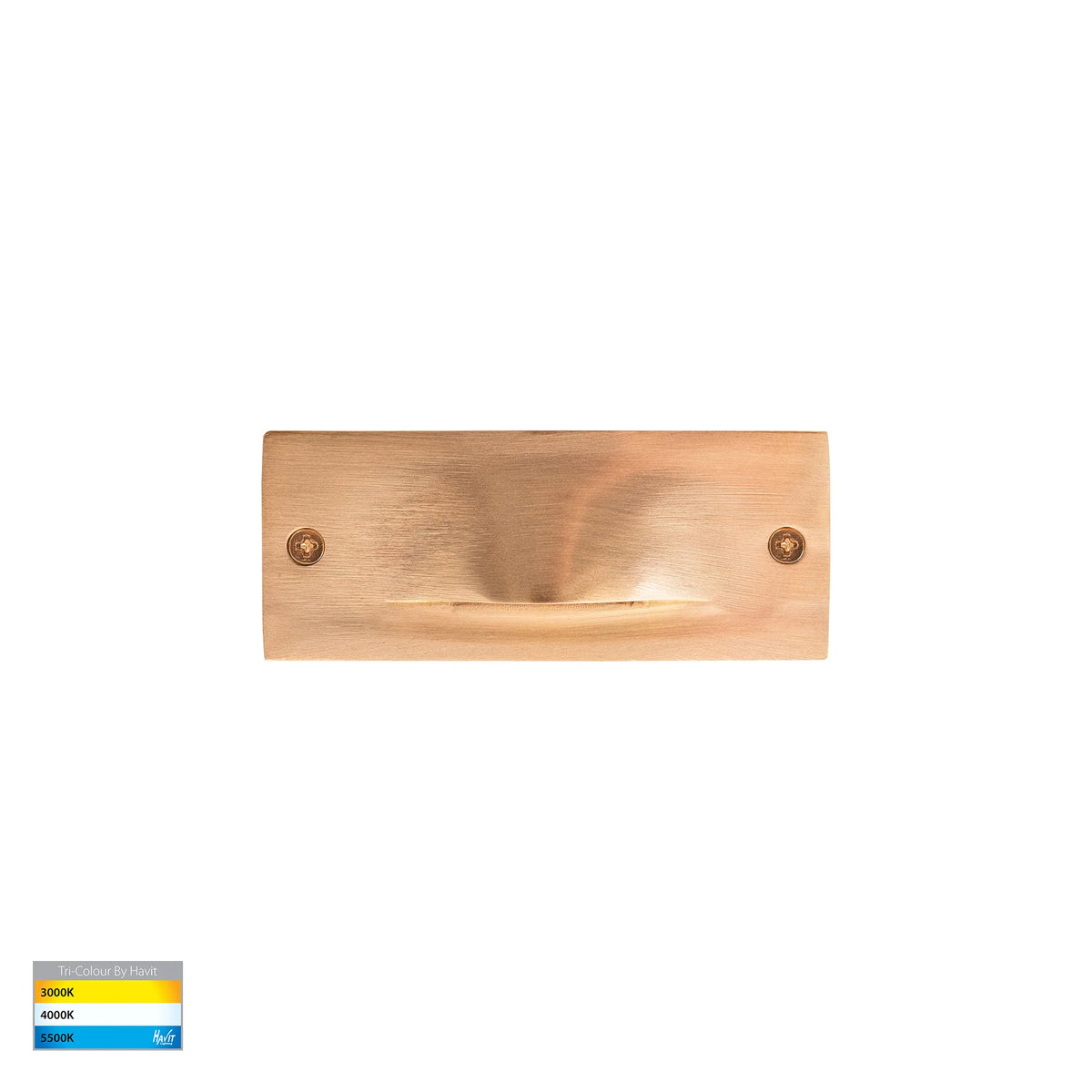

HV3011T Dimension

• Length: 110mm
• Height: 45mm
• Cut out with Canister: 105x41mm
• Cut out without Canister: 103mmx35mm
• Installation Depth: 58mm

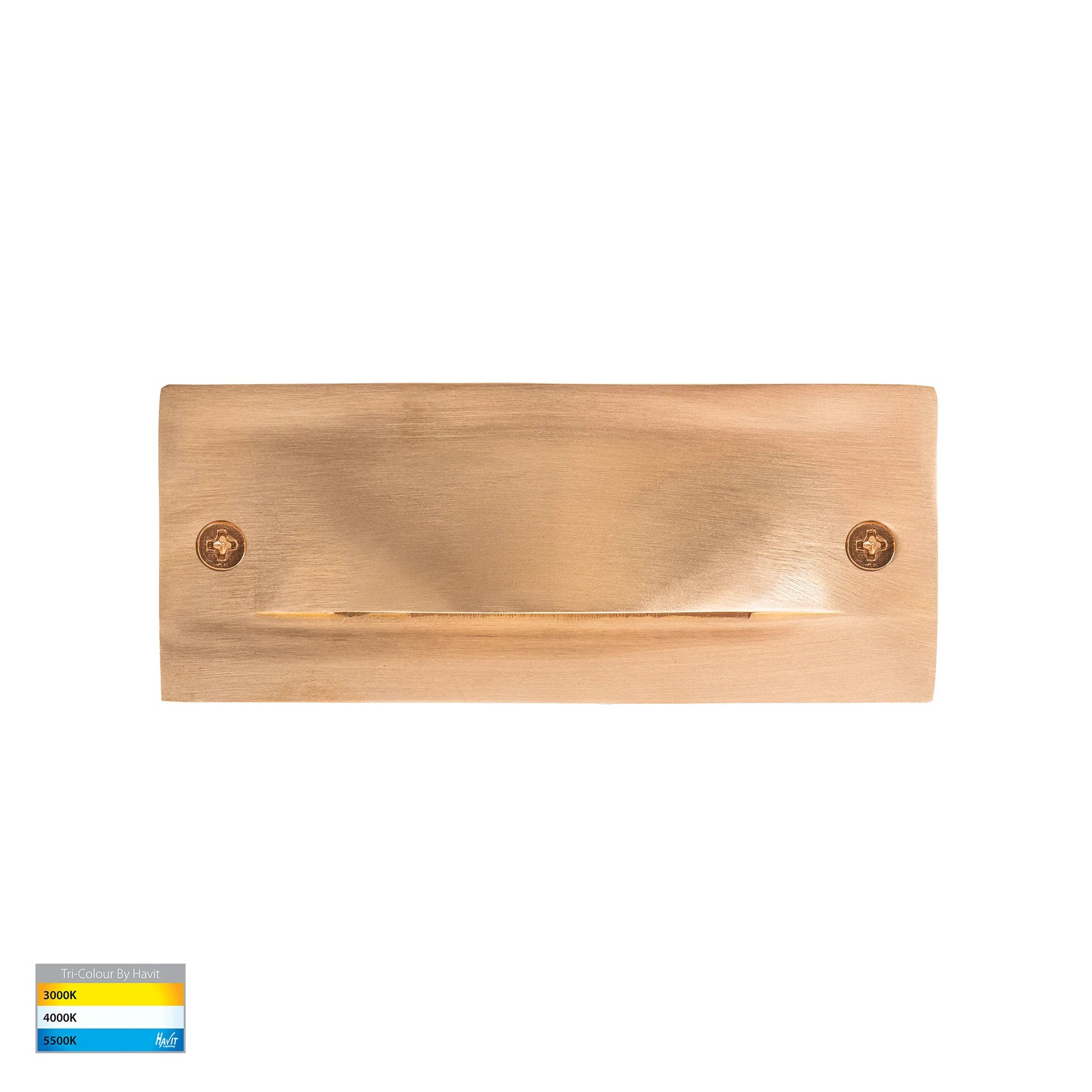

HV3012T Dimension

• Length: 170mm
• Height: 70mm
• Cut out with Canister: 159x58mm
• Cut out without Canister: 155mmx50mm
• Installation Depth: 60mm

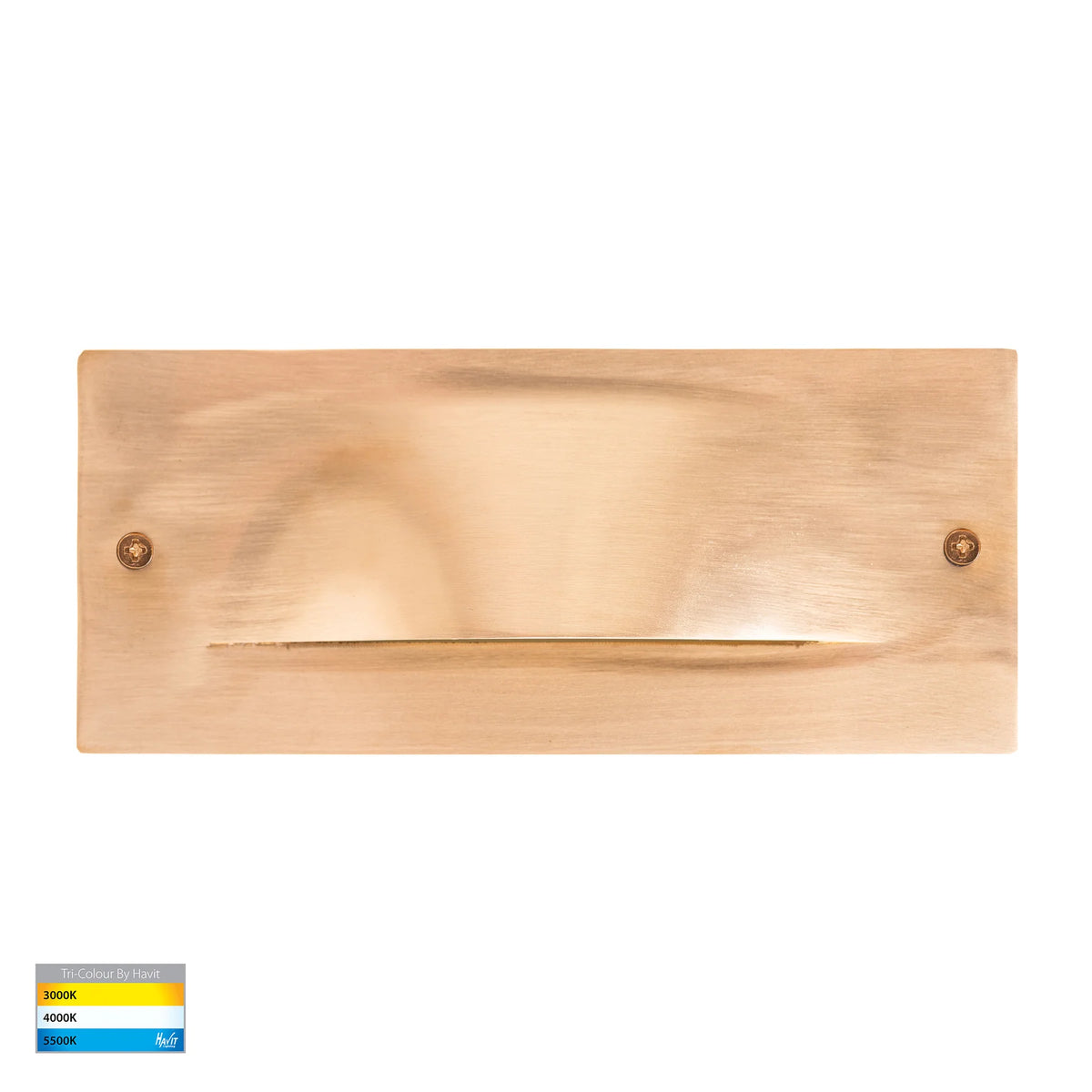

HV3013T Dimension

• Length: 250mm
• Height: 108mm
• Cut out with Canister: 238x86mm

• Installation Depth: 70mm

Data Sheet
